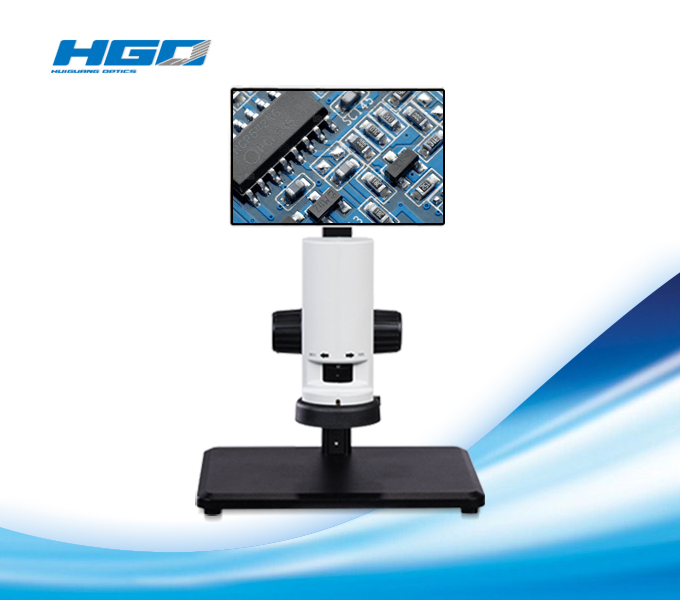

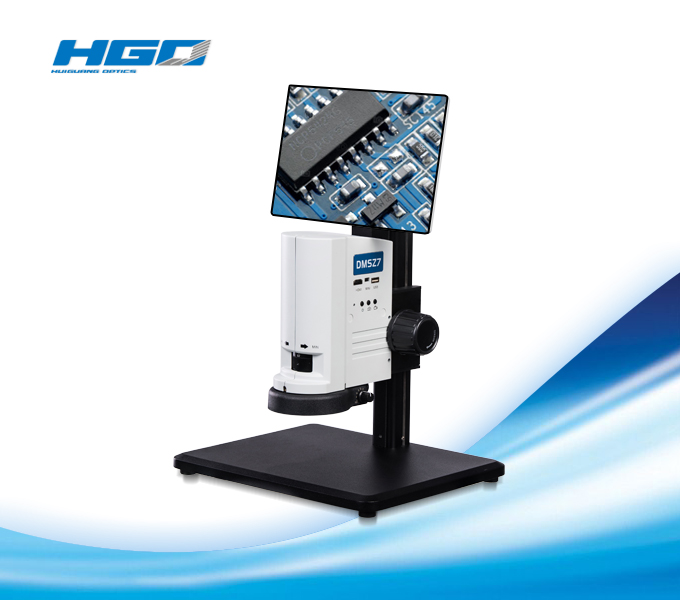

Introduction TO DMSZ7 Series One Machine

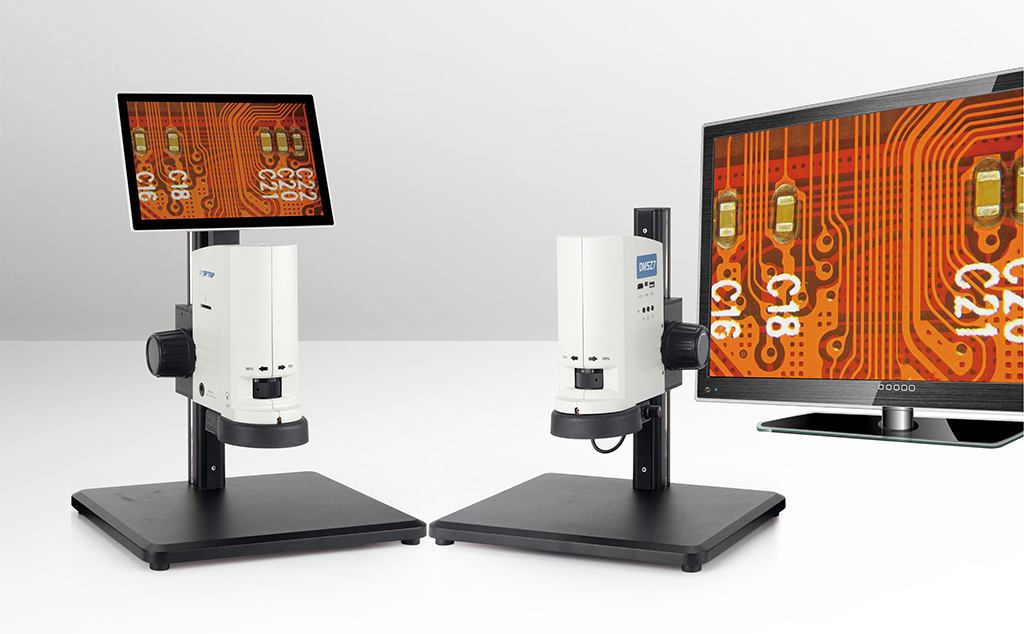

Integrated zoom optical module with highdefinition camera, DMSZ7 embodies the beauty of compact. Display, camera andring lamp with one power supply, avoid the mess of mixed wires.

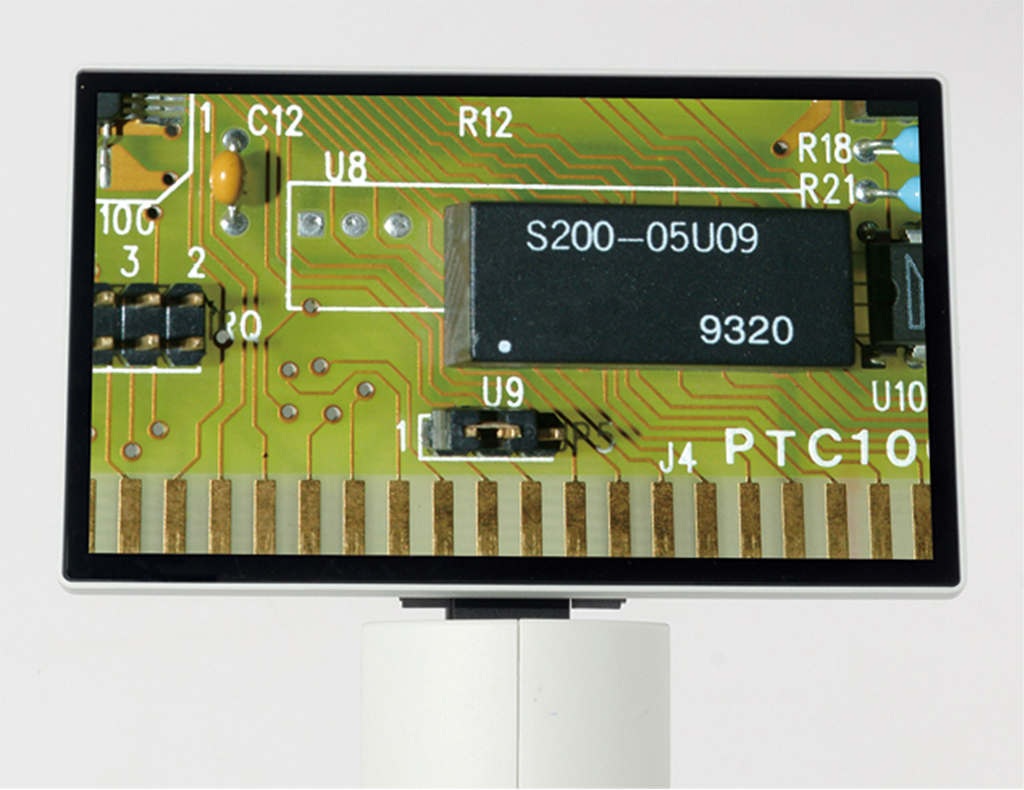

● High definition camera
Built-in CMOS camera with 4.0 mega pixels,restore the real color of image with high sharpness and contrast. The framerate of full HD reaches to 30fps, simultaneously satisfy the demand of speedand clarity.

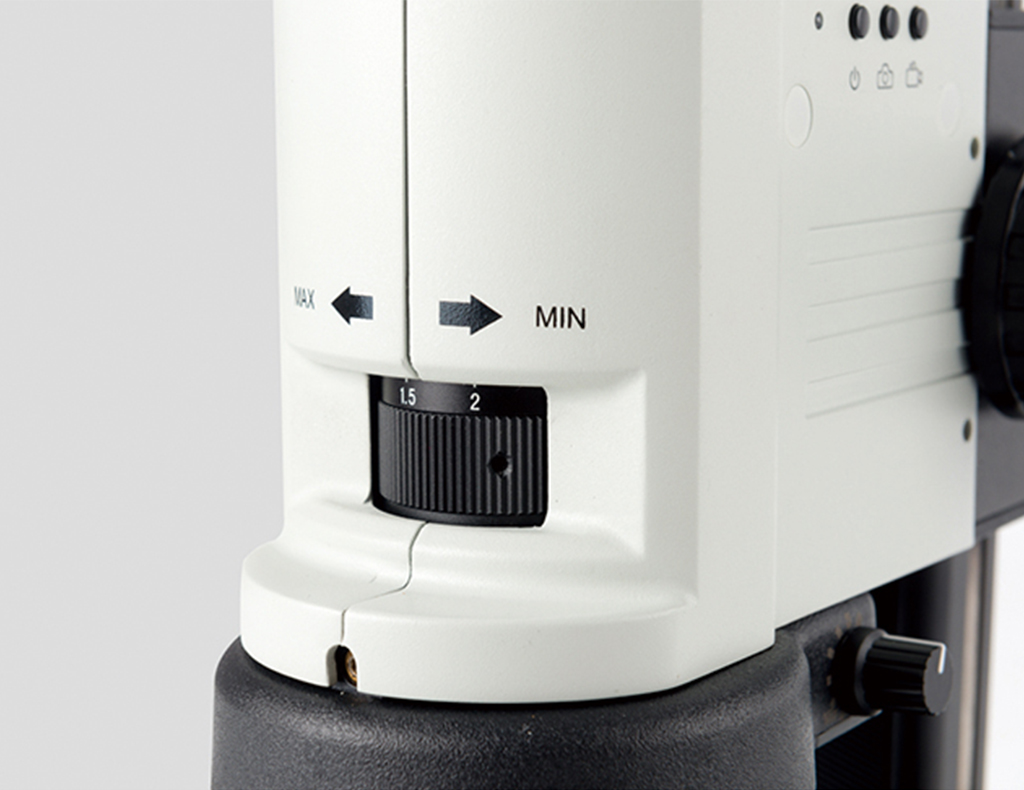

● Adjustable zoom lens
DMSZ7 series one machine with zoom lens 0.7X~5X, magnification7:1,working with big plan base, focusing range 225mm,is able to inspect largeand different samples, working distance 170mm max.

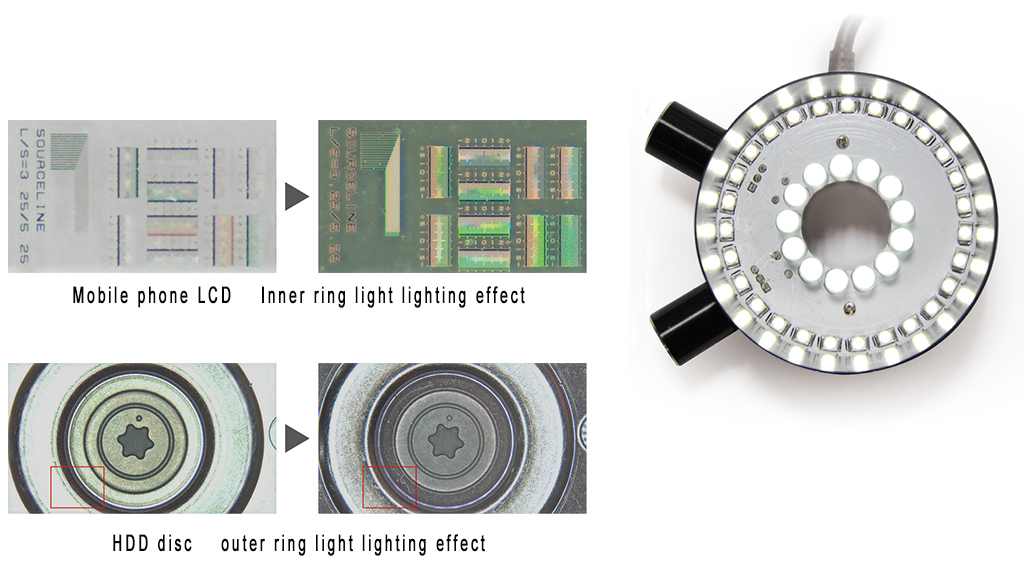

● LED ring lamp with two circle bulbs
Separated switches for intensity control ofinner and outer circle light. Outer circle as obligue illumination, isavailable to present more details. Inner circle as near coaxial light, improvethe accuracy and reproducibility of visual expression.

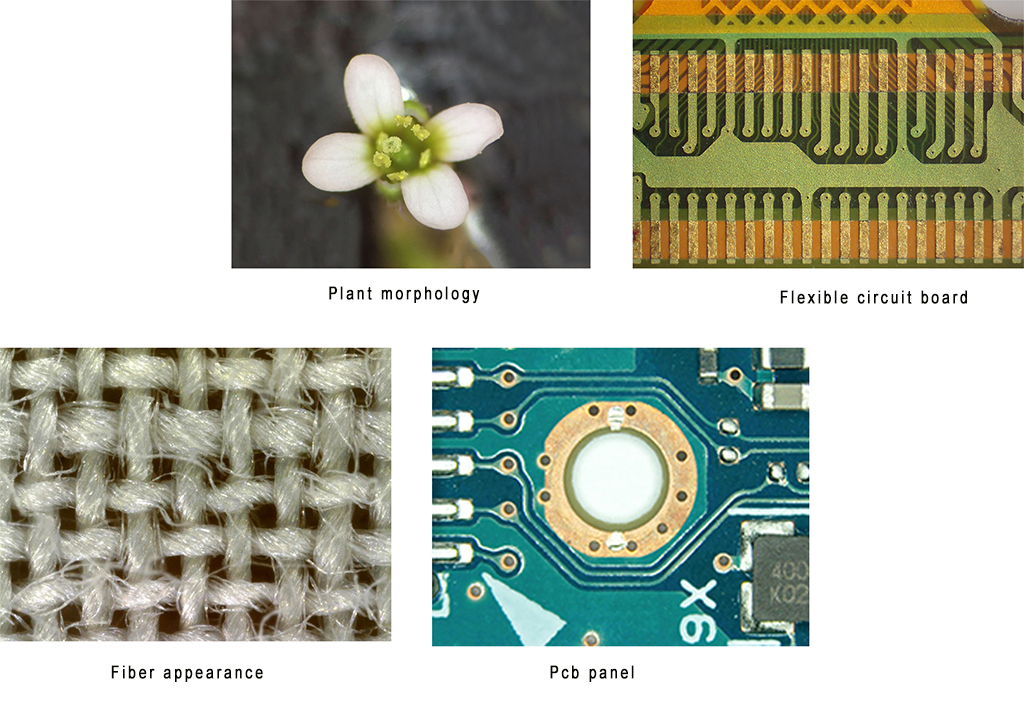

● Applicationfield
Technical specifications
Model | DMSZ7 |
System magnification | 16.5X ~ 115X |
Pixel | 4.0 mega pixels |
Optical zoom | 0.7X~5X |
Sensor | 1/3″ COMS, |
Output | HDMI/USB2.0/Mini USB output; support for SD card/wireless keyboard and mouse. |
Display | 10''；16G memory; |
Main objectives | 1X main objective, WD=105mm |
1.4X main objective, WD=100mm | |
0.5X main objective, WD=170mm | |
Other | built-in camera with HDR image, OSD manual |
Illumination | LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K |
Base size | Verticalarm type large flat base set 260mm *320mm |
