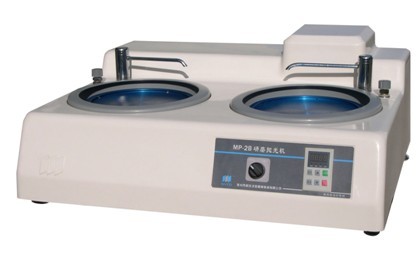

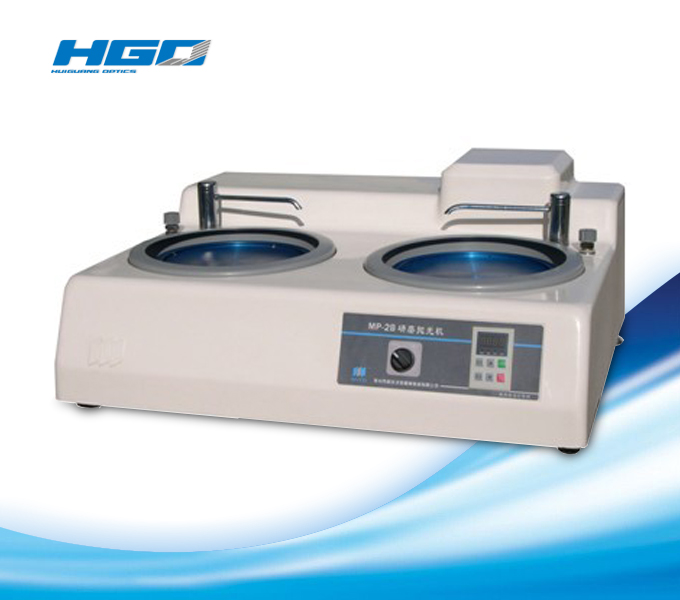

Introduction TO MP-2B Metallographic Sample Grinder&Polisher
MP-2B Metallographic Sample Grinder&Polisher is a double-disc device that can be operated by two workerssimultaneously. It is suitable for pre-grinding, grinding, and polishingmetallographic samples. The speed ranges from 50 to 1000 rpm and can bedirectly adjusted through a frequency converter, which enables moreapplications. It is indispensable in making metallographic samples. Its coolingsystem cools down the samples and prevents damages to the metallographicstructures due to overheating in pre-grinding. This device is easy to use,safe, and reliable. It is an ideal sample preparation choice for factories,research institutes, and labs.
Technical Specifications
● Working voltage : 220V 50HZ
● Speed : 50-1000 rev / min
● Grinder disc diameter : φ200mm
● Motor drive : YSS7124、550W
● Overall dimension :700×670×320mm
● Weight : 50kg
